HONPHO HF-25 ELECTRIC VTOL FIXED-WING UAS

Name: HONPHO HF25 ELECTRIC VTOL FIXEDWING UAS
Brand: HONPHO
Price: 1 USD

Brand Name : HONPHO

Model Number : HF25

Place of Origin : China

MOQ : 1

Contact Now

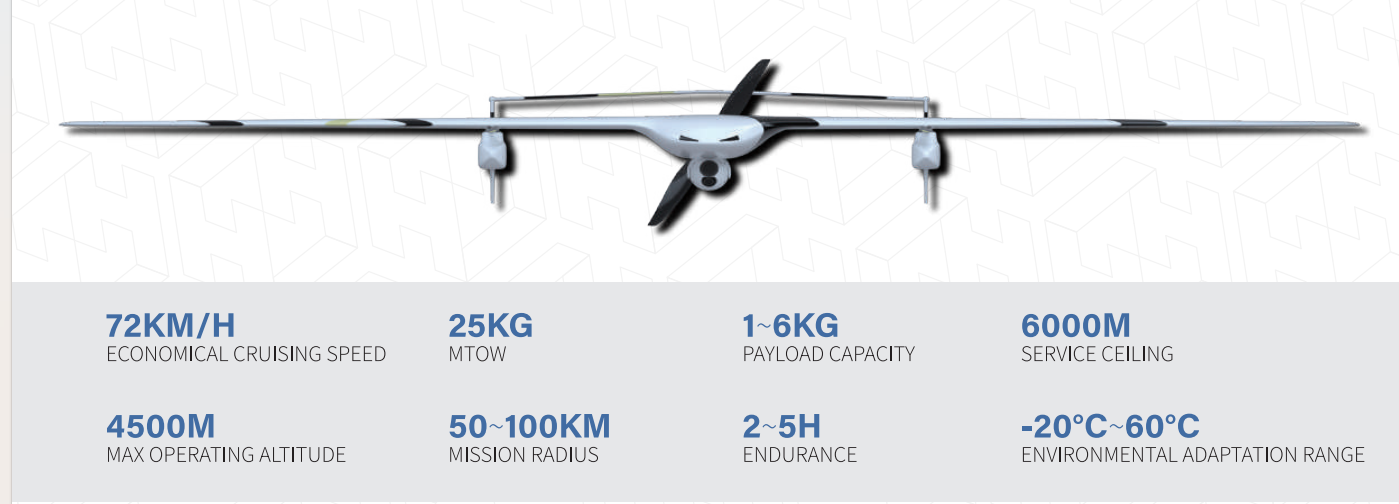

HF-25 ELECTRIC VTOL FIXED-WING UAS
HF-25 provides industry-leading flight time with ultra-low noise output, fast and precise vertical takeoff and landing, and dual-GPS systems with automated route planning.

HONPHO HF-25 ELECTRIC VTOL FIXED-WING UAS

1.1.3 Product parameters

Parameter item	Parameter value (electric version)
Wingspan	3380mm
Length	1920mm
Body material	Carbon fiber
Maximum takeoff weight	25kg
Self-respect	13 kg (without battery, with electronics)
Payload	3kg
Endurance	2.5 hours (no load, normal temperature, normal pressure and no wind) 2 hours (full load, normal temperature, normal pressure and no wind)
Cruising speed	93km/h
Stall speed	70km/h
Maximum flying height	5000m
Battery	12S 45000mah 8.06kg
Engine oil tank
Wind resistance	Class 6 (10.8 m/s-13.8 m/s) (fixed wing) Level 4 (5.5 m/s-7.9m/s) (rotor landing)
Operating voltage	47.4 V (standard) 53.4 V (full voltage)
Operating temperature	0 ℃ ~ 50 ℃ (can fly in light rain, safe operation time is more than 13 minutes, lower than 0 ℃ may lead to shortened cruise)

Application Scenarios

Task system

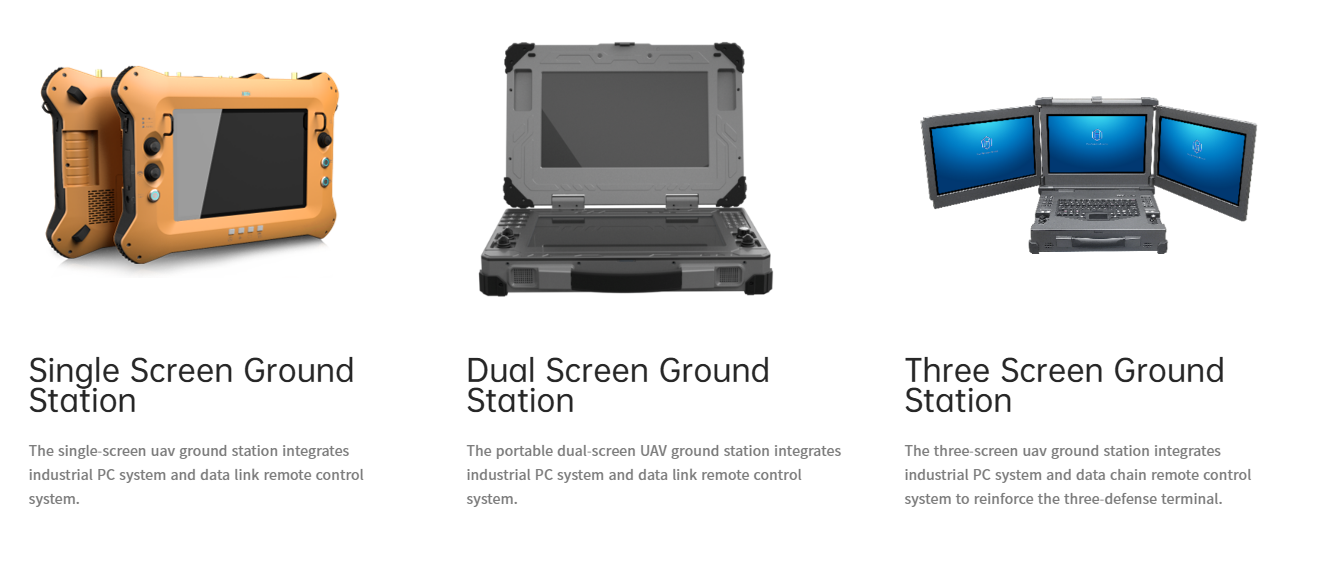

GCS

p HONPHO HF-25 ELECTRIC VTOL FIXED-WING UAS

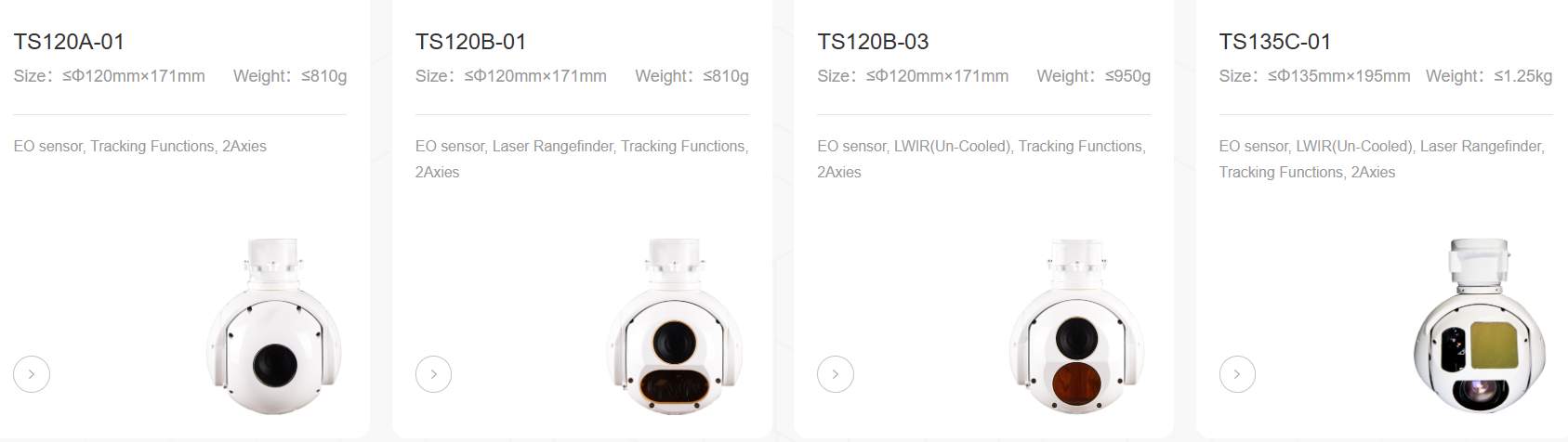

Payload

China HONPHO HF-25 ELECTRIC VTOL FIXED-WING UAS factory

HONPHO HF-25 ELECTRIC VTOL FIXED-WING UAS Images
